Circuit Refresher

So you just started your new Electronics class and you need a refresher.
Here's the start: Ohm's Law...
Remeber this guy? I didn't. Voltage divided by resistance equals current. Current times resistance equals voltage.

Single Resistor

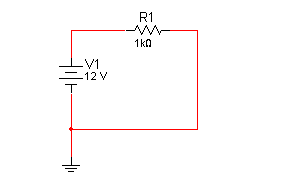

Here's a quick example


Plugging in the numbers we have the equation:

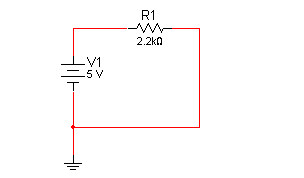

Let's do another one real quick just to make sure we have it:



What did you get?
Show Equation
Now lets move on to more than one resistor in a series. Click Here
